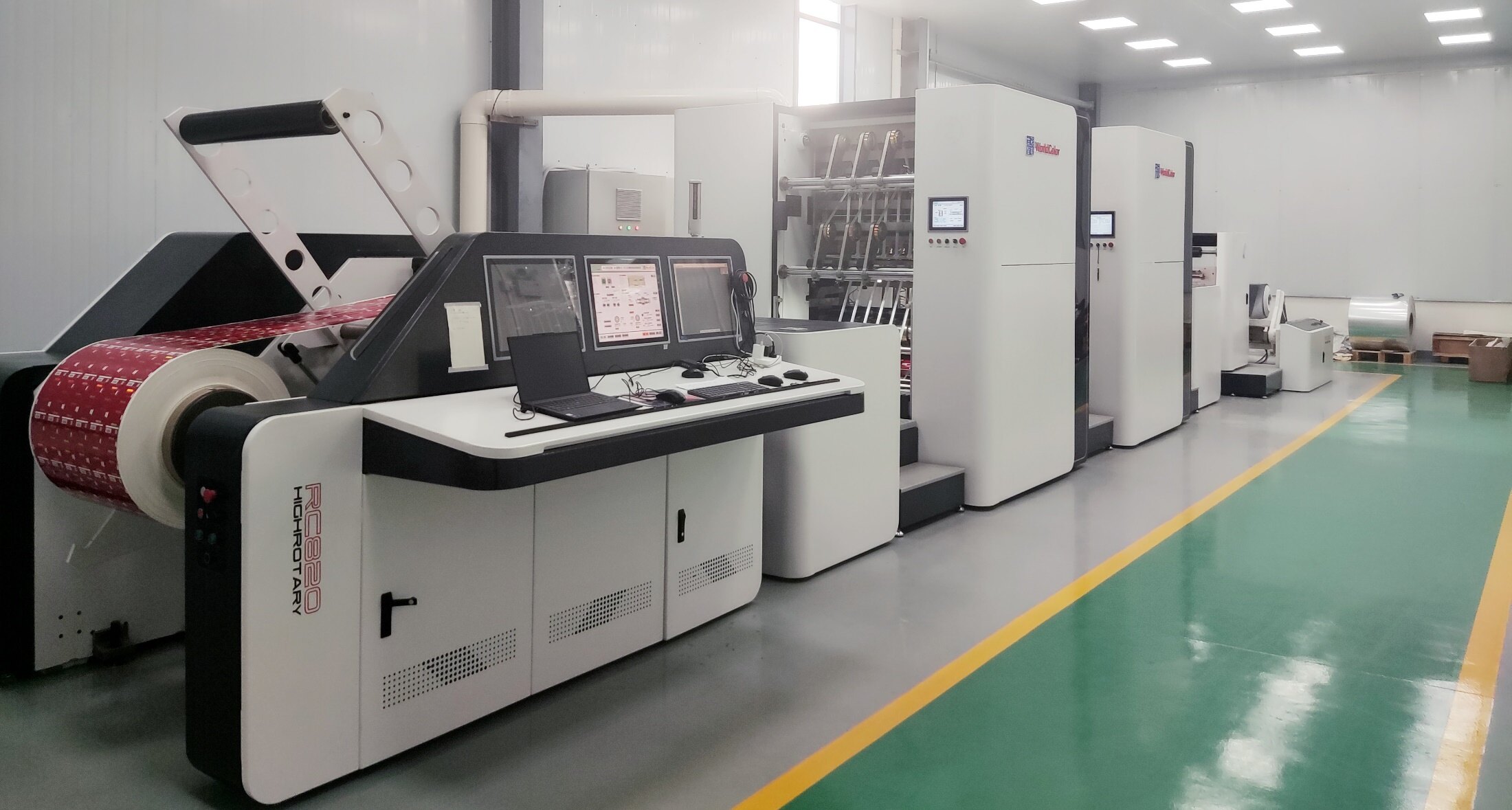

Roll-to-Roll Rotary Hot Foil Stamping Machine
Our roll-to-roll rotary hot foil stamping machine is designed for high-volume, high-speed hot foil stamping of premium packaging, mainly for cigarette packaging. The rotary process supports uniform pressure distribution, precise registration and efficient foil utilization across continuous web production.
For: High-volume premium packaging producers requiring stable hot foil stamping at production speed.
Solves: Combines high-speed web handling, accurate registration and efficient foil feeding for consistent cigarette packaging production.
Key Capabilities
- Uniform rotary pressure for consistent stamping quality across high-volume runs
- Precise registration for both conventional and holographic foil (±0.10 mm at 100 m/min)
- Efficient foil utilization with skip-stepping technology
- Electric heating and temperature-control system with a maximum cylinder temperature of 250°C
- Custom configuration based on material, width and speed requirements
- High-speed production up to 160 m/min mechanical speed

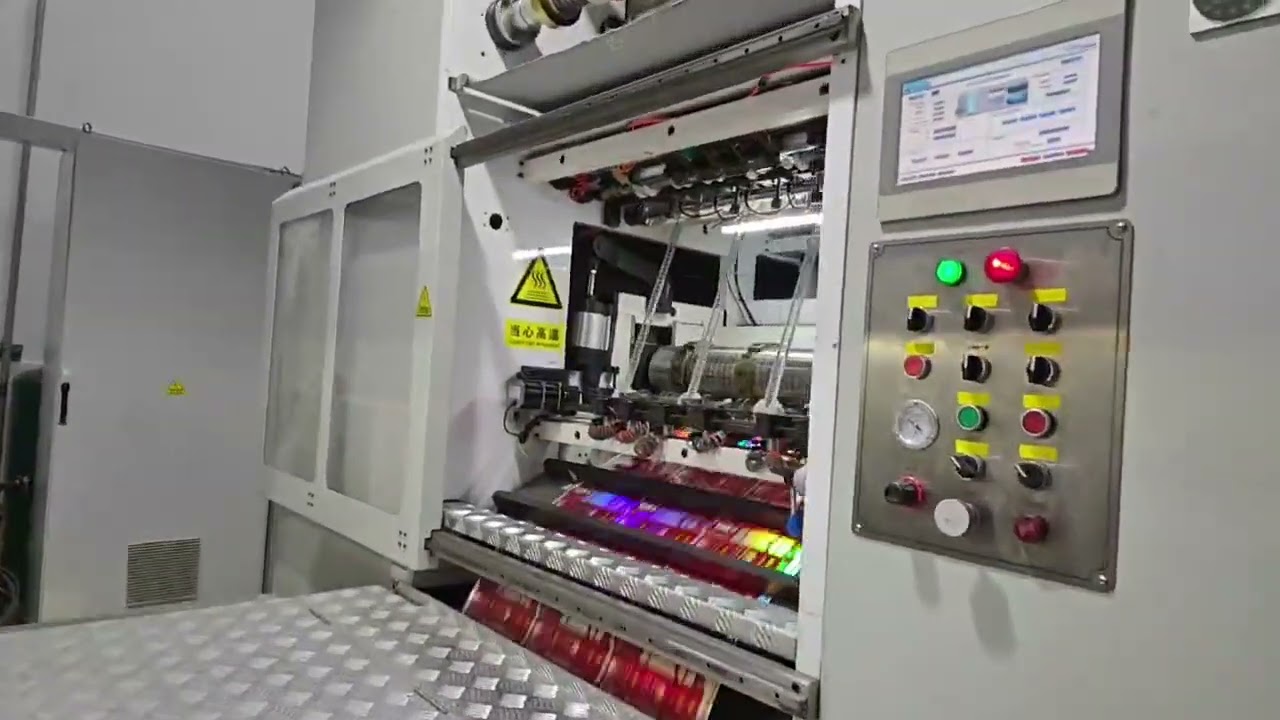

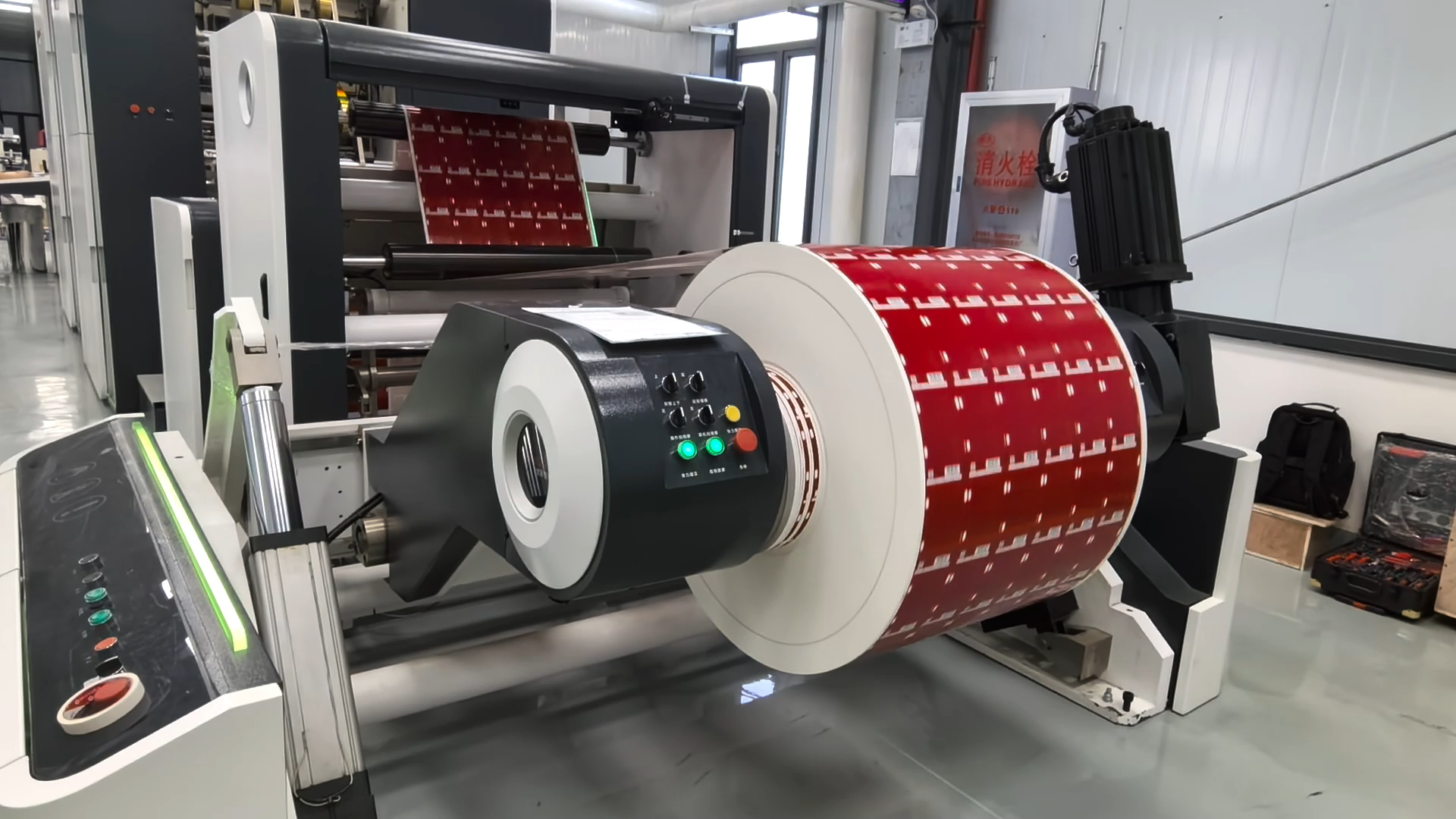

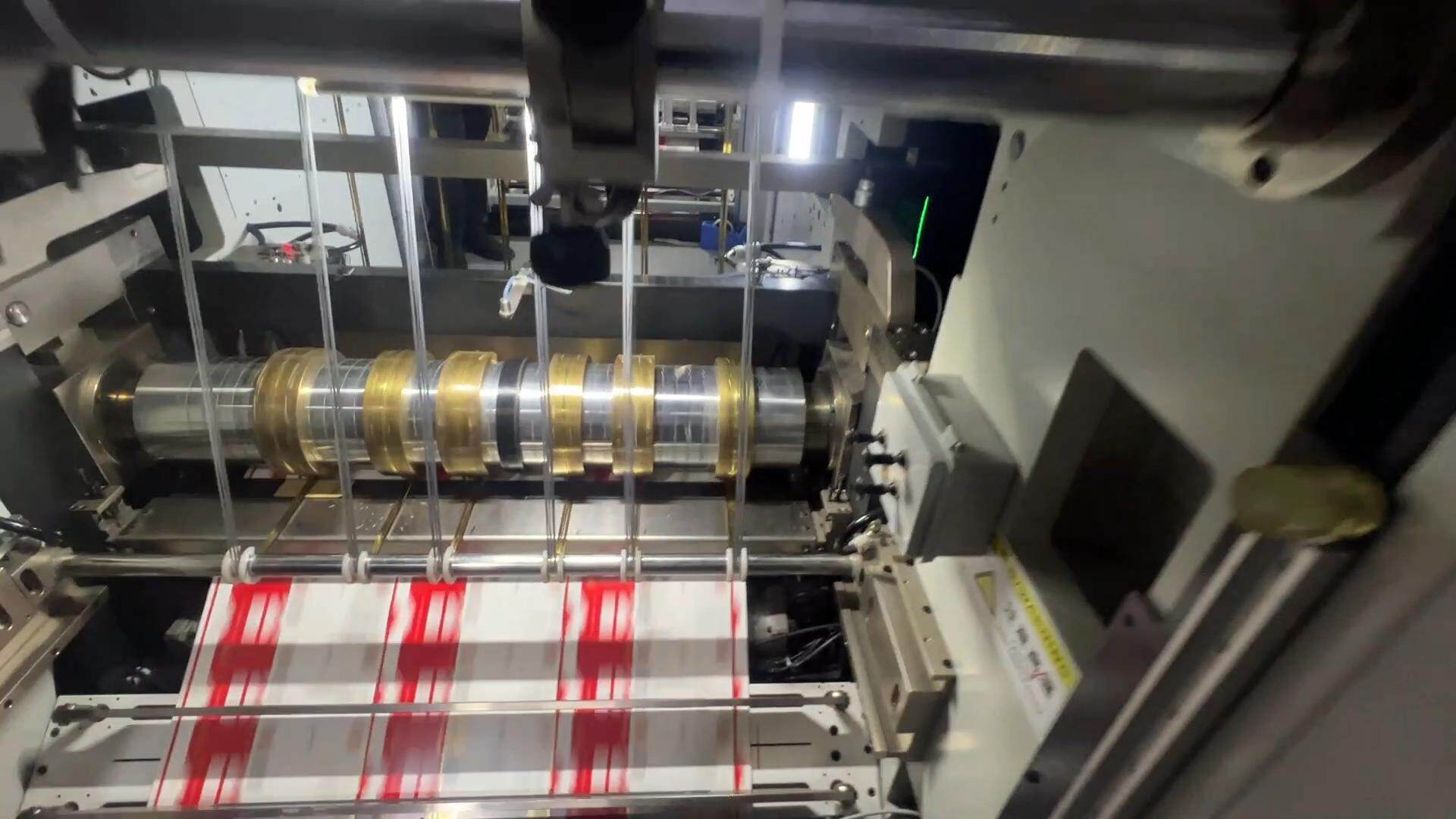

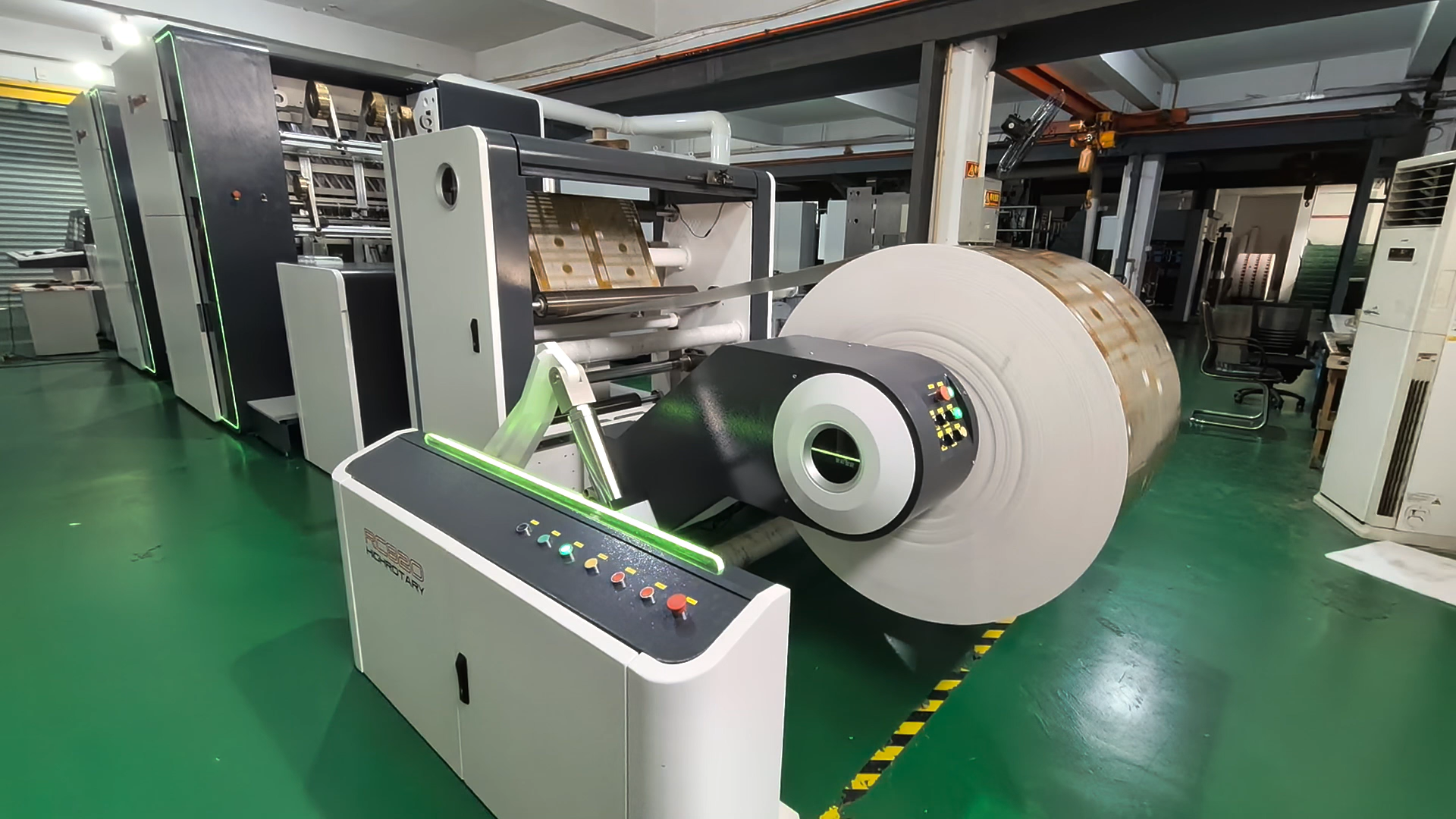

Equipment in Operation
Technical Specifications
| Parameter | Value |
|---|---|
| Maximum Web Width | 850 mm |
| Maximum Processing Width | 820 mm |
| Minimum Web Width | 400 mm |
| Maximum Rewind Diameter | 1,600 mm |
| Maximum Unwind Diameter | 1,600 mm |
| Maximum Unwind Roll Weight | 1,300 kg |
| Maximum Rewind Tension | 900 N |
| Web Guiding Correction Range | ±25 mm |
| Repeat Length Range | 550–645 mm (with Ø160 mm hot stamping cylinder) |
| Roll Core Diameter | 12 in |
| Paper Grammage Range | 70–300 g/m² |
| Maximum Registered Holographic Hot Foil Stamping Speed | Up to 120 m/min |
| Minimum Foil Width | 10 mm |
| Foil Roll Core Diameter | 3 in |
| Maximum Foil Roll Diameter | 400 mm |
| Maximum Mechanical Speed | 160 m/min |
| Longitudinal Registration Accuracy for Holographic Patterns | ±0.10 mm at 100 m/min |
| Lateral Registration Accuracy for Holographic Patterns | ±0.10 mm at 100 m/min |
| Conventional Hot Foil Stamping-to-Print Registration Accuracy | ±0.10 mm at 100 m/min |
| Maximum Hot Stamping Cylinder Temperature | 250 °C |
| Machine Noise Level | <80 dB |
| Machine Dimensions | 18 × 5.5 × 3.5 m |
| Total Installed Power | 170 kW |
| Compressed Air Requirement | ≥6 mPa, 800 L/min |
| Machine Weight | 35.5 t |
Specifications are representative values. Final configuration depends on your specific material, width, speed and process requirements.
